Milesight VS135 High Ceiling ToF People Counter, 2 to 6.5 m, PoE, LoRaWAN or 4G

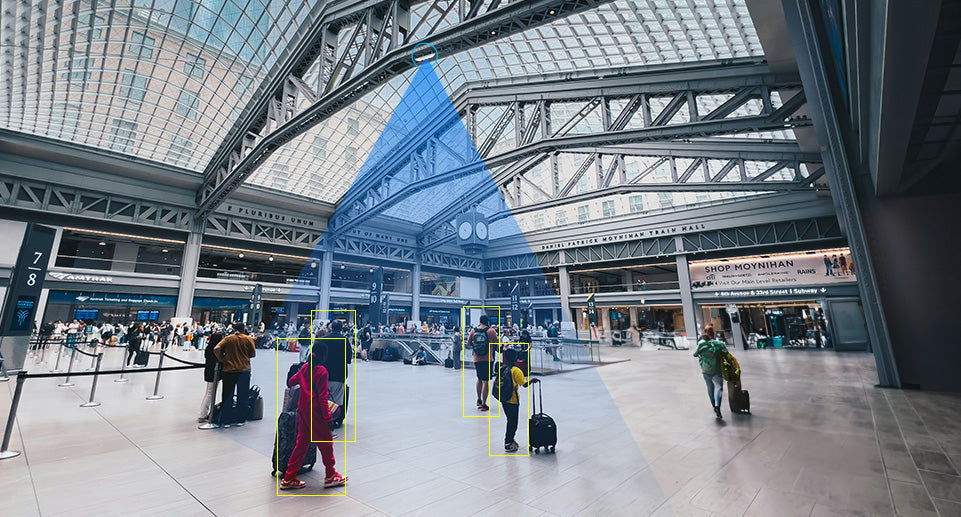

The Milesight VS135 High Ceiling is a Time-of-Flight (ToF) people counter for indoor entrances with ceilings from 2 to 6.5 m, such as shopping mall entrances, atriums, supermarkets and transport halls. It counts people in and out from a 3D depth map instead of camera images, separates adults, children and staff, and switches to a radar-based sleep mode when the area is empty. Choose PoE+, LoRaWAN or 4G.

Buying for several entrances or sites? Shop prices are per unit and exclude VAT. For projects we quote hardware, installation, licences and support together. Request volume pricing. Partners see their own price after signing in.

Key features

• High ceiling ToF: mounting height up to 6.5 m (21.3 ft), detection range 2–6.5 m, 60° × 45° field of view.
• Accuracy: Milesight states up to 99.8% counting accuracy for the VS135; distance accuracy ±6.5 cm on the High Ceiling version.
• No images of people: depth map counting with 940 nm invisible light, works in darkness.
• Counting rules: up to 4 bi-directional lines, U-turn filtering, 4 regions with dwell time, group counting, children/adult, staff exclusion with the VA31 lanyard.
• Radar ESG mode for power-saving sleep when unoccupied; 3-axis tilt compensation and automatic height detection.
• Integration: PoE+ version with HTTP(S), MQTT(S), CGI, BACnet/IP, alarm I/O and stitching of up to 8 sensors.

Which VS135 High Ceiling do I need?

About the SKUs: SKUs starting with NF are Vemco's codes for Milesight VS-series sensors delivered with Vemco firmware. NF135 is the Milesight VS135, and the suffix -High marks the High Ceiling Mount version, which Milesight lists within each VS135 model in the datasheet.

For EU868 LoRaWAN networks ask us for the 868M version. In the Americas use the PoE+ version, if needed with a UR32L or UR35 4G router (L04AF or L04AU).

Coverage by mounting height

Detection area per sensor (length × width), from the Milesight VS135 datasheet:

Below about 3.5 m the standard VS135 covers a wider area per sensor; the High Ceiling version is the choice from roughly 3.5 to 6.5 m.

Technical specifications

Source: Milesight VS135 datasheet and the Milesight VS13x product page (PDF, no sign-up).

Sensor and software: what you get

On the sensor: in/out counting, regions and dwell, staff and children detection, local storage and data push. In software: dashboards, multi-site comparison, conversion with POS data and reports. Vemco delivers the sensor with Vemco firmware, ready for VemCount, which comes with a 60-day free trial (see software plans). The hardware price does not include a software licence.

Installation and accessories

Mount the sensor centred over the entrance, pointing straight down; the 3-axis sensor compensates small tilts. For wide mall entrances plan several PoE+ units with stitching. Use the VB02 adjustable bracket for angled mounting and the VA31 staff lanyard for staff exclusion. After mounting, Vemco sets the counting line and validates the counts with the remote setup and validation service.

Related sensors: VS135 standard · VS125 3D (up to 6 m) · VS125 Outdoor

Frequently asked questions

What is the maximum mounting height of the Milesight VS135?
The High Ceiling version mounts up to 6.5 m (detection range 2–6.5 m). The standard version works up to 3.5 m.

Does it capture images?
No. It counts from a Time-of-Flight depth map, so no images of people are captured.

Can it be installed outdoors?
No. The VS135 is rated IP40 for indoor use. For outdoor entrances see the VS125 Outdoor (IP67).

Which LoRaWAN frequency do I need?
915M for the Americas, Australia, Korea and most of Asia-Pacific (stocked); 868M for Europe, the Middle East, Africa, India and Russia (on request).
