The Milesight UG67 is an outdoor 8-channel LoRaWAN gateway for shopping centre car parks, campuses, retail parks, industrial sites and smart city projects. Its IP67 housing works from −40 to +70 °C, it mounts on a wall or pole, and it brings a built-in network server, PoE, Wi-Fi, GNSS and optional 4G backhaul.
Buying for several sites? Shop prices are per unit and exclude VAT. For projects we quote gateways, sensors, installation, licences and support together. Request volume pricing. Partners see their own price after signing in.
Key features
- 8 channels, Semtech SX1302: about 2,000 Class A/B/C devices at a 10-minute uplink interval; −140 dBm sensitivity, 27 dBm transmit power.
- Built for outdoors: IP67, −40 to +70 °C, PC and aluminium housing, wall or pole mounting.
- Long range: Milesight states up to 15 km line of sight; two external N-type antennas (2 × 60 cm antennas supplied).
- Built-in network server or forwarding to external servers (Semtech UDP, Basic Station).
- Integration: MQTT(S), HTTP(S), BACnet/IP, BACnet/SC, Modbus TCP and Modbus RTU over TCP.
- Backhaul and location: gigabit Ethernet with IEEE 802.3af PoE (injector included), Wi-Fi, optional 4G, GNSS; power-fail alarm capacitor.
Which UG67 do I need?
Milesight ordering codes follow the pattern UG67-[4G module]-[LoRaWAN band]. Shop SKUs show the band and "-4G" for the cellular version; the matching 4G module is selected for your region.
| Shop SKU | LoRaWAN frequency plans | Backhaul | Availability |
|---|---|---|---|
| UG67-868M | EU868 (Europe, Middle East, Africa), IN865 (India), RU864 (Russia) | Ethernet/PoE, Wi-Fi | Stocked |
| UG67-868M-4G | EU868, IN865, RU864 | Ethernet/PoE, Wi-Fi, 4G (L04EU module: EMEA) | Stocked |
| UG67-915M | US915 (North America), AU915 (Australia, Latin America), KR920 (Korea), AS923-1/2/3/4 (Asia-Pacific) | Ethernet/PoE, Wi-Fi | Stocked |
| UG67-915M-4G | US915, AU915, KR920, AS923 | Ethernet/PoE, Wi-Fi, 4G (L04AU for Australia/Latin America or L04AF for North America) | Stocked; confirm your region at order |
| – | CN470 (China), 470M band | As above | Available on request |
4G module bands, from Milesight's naming convention: L04EU (EMEA, Thailand) LTE FDD B1/B3/B7/B8/B20/B28, TDD B38/B40/B41; L04AU (Latin America, Australia/New Zealand) LTE FDD B1/B2/B3/B4/B5/B7/B8/B28, TDD B40; L04AF (North America) LTE FDD B2/B4/B5/B12/B13/B14/B66/B71. Note: Milesight states that AU915 and US915 do not support LBT.
Technical specifications
| LoRaWAN | Semtech SX1302, 8 channels (half/full duplex), Class A/B/C, −140 dBm, max 27 dBm |
| Antenna | 2 × N-female external connectors, 2 × 60 cm LoRaWAN antennas included |
| Ethernet | 1 × RJ45 10/100/1000 Mbps WAN with cable gland, PoE PD (IEEE 802.3af) |
| Wi-Fi | IEEE 802.11 b/g/n 2.4 GHz, AP or client |
| Cellular (optional) | 4G LTE, mini SIM; bands per module above |
| GNSS | GPS, GLONASS, QZSS, SBAS |
| Protocols | MQTT(S), HTTP(S), BACnet/IP, BACnet/SC, Modbus TCP, Modbus RTU over TCP; Semtech UDP, Basic Station |
| VPN | OpenVPN, IPsec, PPTP, L2TP, GRE, DMVPN, WireGuard |
| Power | IEEE 802.3af PoE or 6–12 V DC (M12 connector); typical 3.6 W, max 4.8 W |
| Environment | IP67; −40 to +70 °C (reduced cellular performance above 60 °C) |
| Dimensions and weight | 240 × 164 × 90.9 mm; 1,463 g |
| Mounting | Wall or pole |
| Certifications | CE, CE (RED), FCC, Telec, RoHS |
Source: Milesight UG67 datasheet, the Milesight UG67 product page and the Milesight naming convention (no sign-up).
Gateway and software
On the gateway: packet forwarding, local network server, integrations and VPN. In software: sensor and gateway health, alerts and analytics. Vemco connects the UG67 to VemSpace and VemCount, both with a 60-day free trial (see software plans).
Installation and compatible sensors

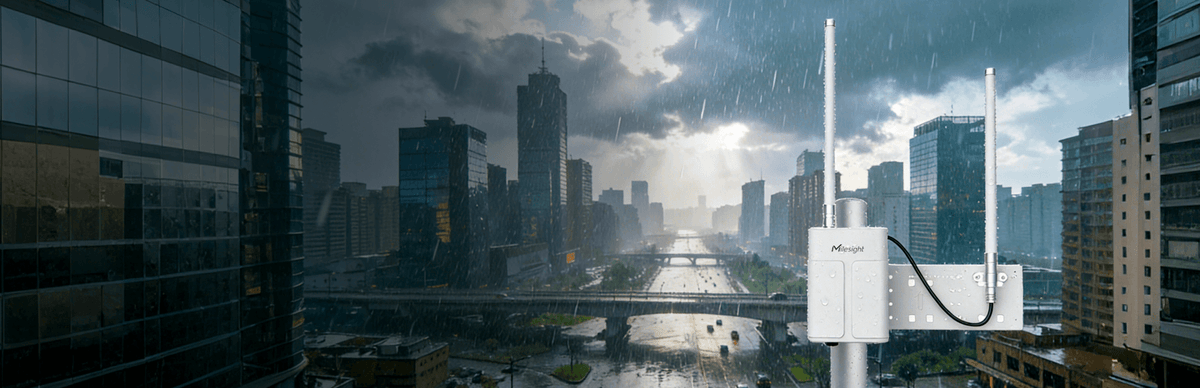

Mount the UG67 high on a wall or pole with a clear view over the area; feed it by PoE with the supplied injector. It works with the LoRaWAN sensors in this shop on the same frequency plan, including the VS135, VS121, EM300, EM400-TLD, AM307 and WS301. For indoor coverage choose the UG65.
Frequently asked questions
What is the range of the Milesight UG67?
Milesight states up to 15 km line of sight; in built-up areas range is much shorter and depends on mounting height and obstacles.
Which UG67 frequency do I need?
868M for Europe, the Middle East, Africa, India and Russia; 915M for the Americas, Australia, Korea and most of Asia-Pacific.
Is a PoE injector included?
Yes, Milesight lists a PoE injector in the UG67 accessories. It can also run on 6–12 V DC.
Does the UG67 support BACnet?
Yes, BACnet/IP and BACnet/SC, plus Modbus TCP, MQTT(S) and HTTP(S).
