Açıklama

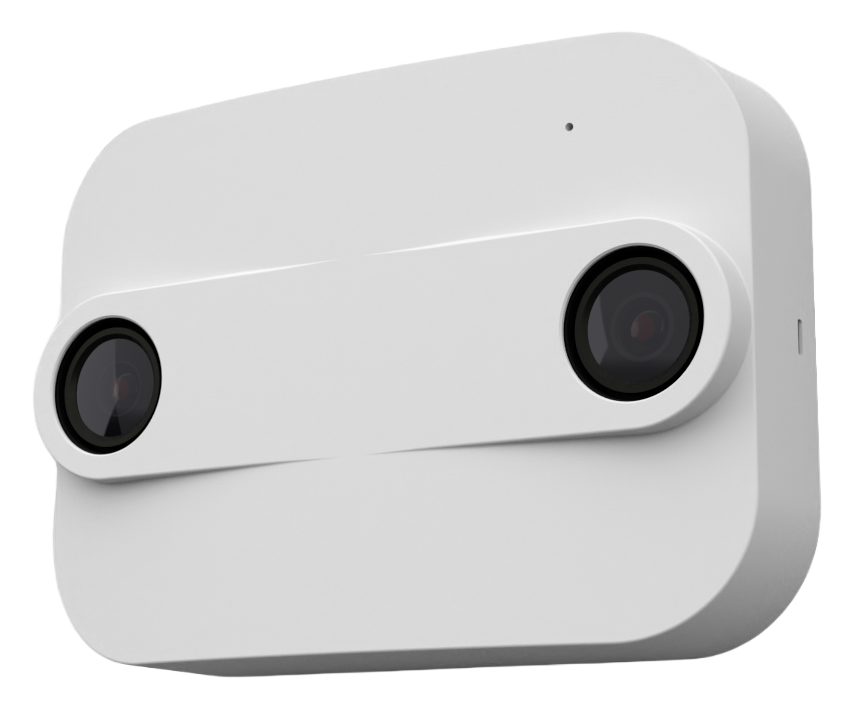

The Xovis PC2SE is an indoor 3D people counting sensor for store entrances, shopping mall corridors, offices, museums and airports. It counts people in and out with 3D stereo vision and embedded AI, from a ceiling mounting height of 2.20 to 6.00 m, and sends only anonymous counts, never images. Choose the standard PC2SE, the PC2SE-L for heights close to 6 m, or the PC2SE-UL for low ceilings. Vemco is a Xovis Gold partner.
Buying for several entrances or sites? Shop prices are per unit and exclude VAT. For projects we quote hardware, installation, licences and support together. Request volume pricing. Partners see their own price after signing in.
Key features

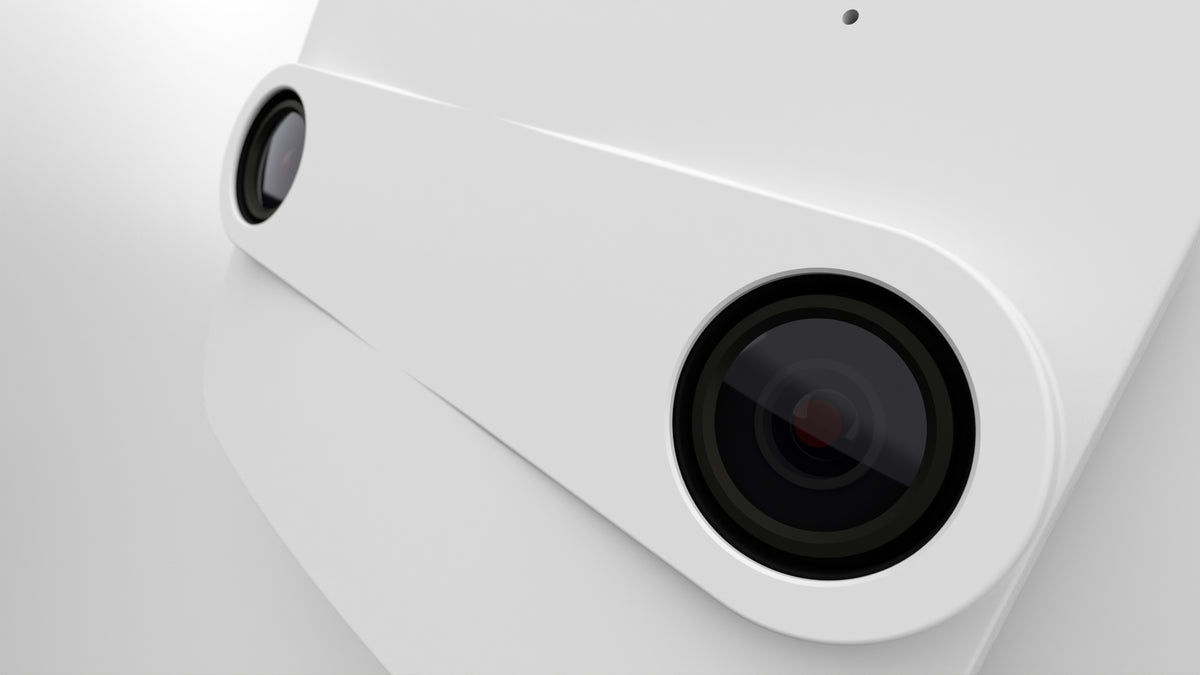

- 3D stereo vision with on-device AI for reliable counts in crowds, groups and changing light.
- Mounting height 2.20–6.00 m (PC2SE-UL: 1.95–3.50 m), with coverage up to 11.00 × 8.00 m per sensor on the PC2SE-L.
- Privacy by design: 4 privacy modes, data sent as text only, without personally identifiable information. Xovis states the sensor carries an ePrivacy seal for GDPR-compliant operation.
- Open integration: API with Swagger documentation and data push over HTTP(S), MQTT(S), FTP(S), SFTP, TCP and UDP.
- Multi-sensor stitching for wide entrances (plan at least 30 cm overlap); use a Xovis SPIDER for 10 or more sensors.
- Power over Ethernet (PoE Class 0, IEEE 802.3af, max 7.5 W) and up to 3 years of on-device data storage.
- Optional AI extensions with the XC-PAB licence: staff exclusion, gender and age statistics, view direction. Group counting is included with firmware 5.
Which PC2SE model do I need?
| Model | Mounting height | Best for |
|---|---|---|
| PC2SE (standard) | 2.20–6.00 m | Most store and mall entrances |
| PC2SE-L | 2.20–6.00 m | Optimised for heights close to 6 m; widest coverage |
| PC2SE-UL | 1.95–3.50 m | Low ceilings and wide, low entrances |
Coverage by mounting height
Counting area per sensor (width × depth), from the Xovis Selection Guide (July 2026). A dash means the height is not listed for that model.
| Height | PC2SE | PC2SE-L | PC2SE-UL |
|---|---|---|---|
| 2.5 m | 1.88 × 1.06 m | – | 2.63 × 2.13 m |
| 3.0 m | 3.75 × 2.13 m | – | – |
| 3.5 m | 5.63 × 3.19 m | – | 7.00 × 5.88 m |
| 4.0 m | 7.00 × 4.25 m | 7.50 × 4.25 m | – |
| 5.0 m | 7.00 × 5.00 m | 11.00 × 6.38 m | – |
| 6.0 m | 7.00 × 5.00 m | 11.00 × 8.00 m | – |
Technical specifications
| Technology | 3D stereo vision, embedded AI processing |
| Environment | Indoor, IP40 (IEC 60529) |
| Mounting tilt | ±15° x-axis, ±5° y-axis |
| Power | PoE Class 0 (IEEE 802.3af), max 7.5 W |
| Network | 1000Base-T Ethernet, RJ45, up to 100 m (Cat-5e shielded or better); IPv4/IPv6, DHCP, HTTPS, IEEE 802.1X |
| Data push | HTTP(S), FTP(S), SFTP, MQTT(S), TCP, UDP |
| Operating conditions | 0 to +45 °C, 20–80 % RH non-condensing, minimum 2 lux |
| Dimensions | 13.02 × 9.32 × 3.28 cm (with cover) |
| Weight | 300 g with cover, 250 g without |
| Colour | Sensor black (RAL 9005); cover white (RAL 9003) or black (RAL 9005) |
| Certifications | IEC/EN 62368-1, IEC/EN 61326-1, CISPR 11/32/35, FCC 47 CFR Part 15, ICES-001, RoHS |
| MTBF | 652,891 h at 40 °C |
| Firmware | 5.1 or later |
Source: Xovis PC2SE technical datasheet and Xovis Selection Guide (PDF, no sign-up).
Sensor and software: what you get
On the sensor: in/out counting across the covered area, privacy modes, on-device storage, API and data push. In software: dashboards, multi-site comparisons, conversion with POS data and reporting. Use the PC2SE with VemCount, which comes with a 60-day free trial (see software plans), or connect it to your own platform through the API and MQTT.
Installation and accessories

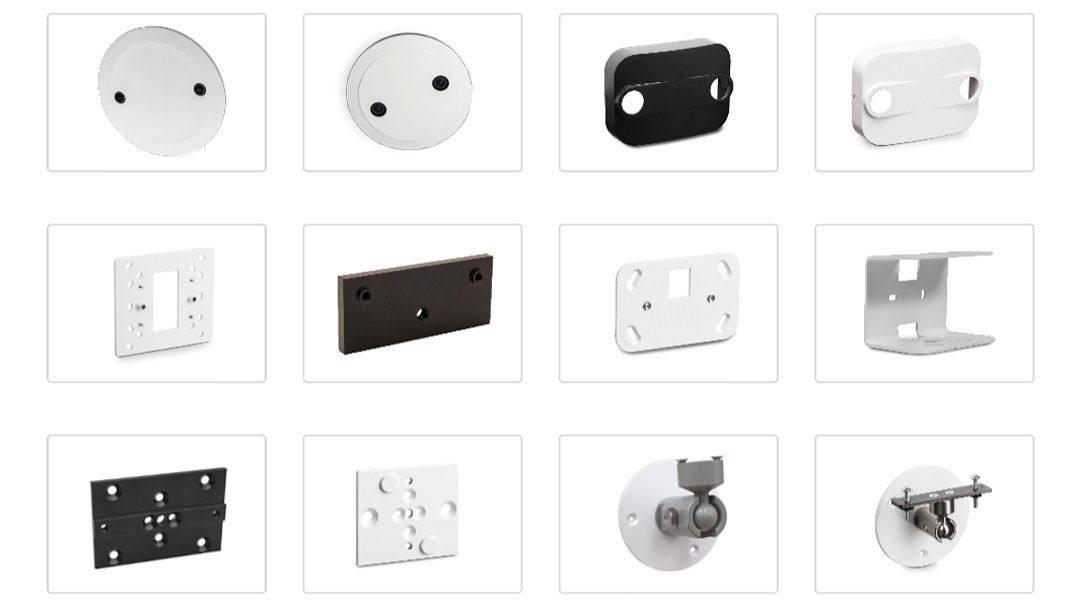

Mount the sensor centred over the counting line. Use the PA-PC2-FM flush mounting kit in suspended ceilings, the PA-PC2-SM surface mounting kit on solid ceilings, or the PA-PC-PS pivot mount for angled installs. For staff exclusion add PA-PC-NTR name tags with the XC-PAB licence. The most common mistakes are the standard lens on a low, wide entrance, too little overlap between stitched sensors and cable runs over 100 m. After mounting, Vemco can configure and validate the sensor with the remote setup and validation service.
Already own a Xovis sensor, or replacing a counter?
Existing Xovis PC2, PC2S, PC2R and PC3 sensors connect to VemCount without new hardware; Vemco loads firmware and licences remotely. The PC2SE also replaces thermal, Brickstream and older 3D counters at the same position. Ask a technical specialist.
Related sensors: PC2RE with Wi-Fi · PC2SE-O outdoor · PF-L · PC3SE for high ceilings · Milesight VS125
Frequently asked questions
What mounting height does the Xovis PC2SE need?
The PC2SE and PC2SE-L mount at 2.20–6.00 m. For low ceilings choose the PC2SE-UL (1.95–3.50 m).
What is the difference between PC2SE, PC2SE-L and PC2SE-UL?
The same sensor optimised for different heights: the standard model for most entrances, the L model for heights close to 6 m with the largest coverage, and the UL model for low ceilings.
Can the PC2SE be installed outdoors?
No. It is an indoor sensor rated IP40 for 0 to +45 °C. For outdoor entrances choose the PC2SE-O.
How is the PC2SE powered and connected?
PoE Class 0 (IEEE 802.3af, max 7.5 W) over Cat-5e shielded cable up to 100 m. Need Wi-Fi data transfer? See the PC2RE.
Can I use my own software instead of VemCount?
Yes. The sensor has an API with Swagger documentation and pushes data over HTTP(S), MQTT(S), FTP(S), SFTP, TCP or UDP.
How do I exclude staff from the counts?
Activate the XC-PAB AI licence and give staff the Xovis PA-PC-NTR or PA-PC-NTB name tags.
