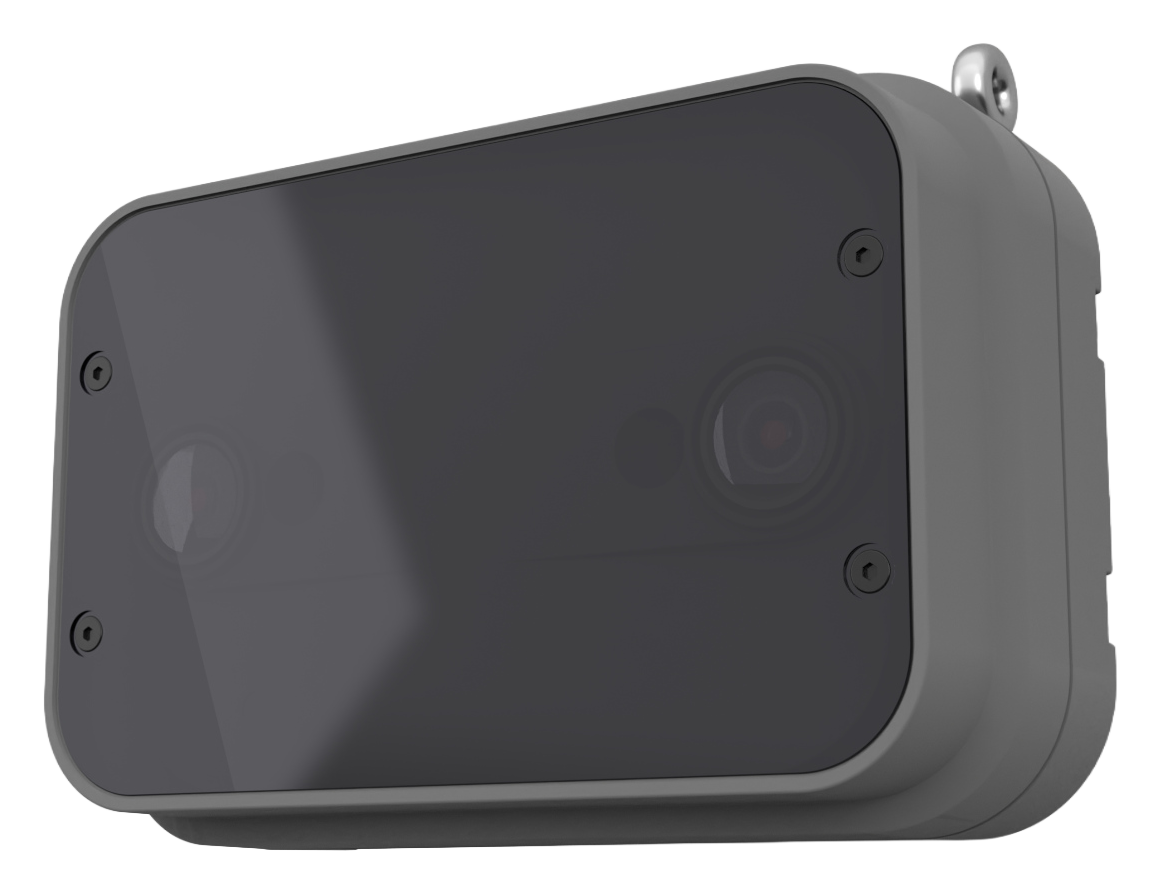

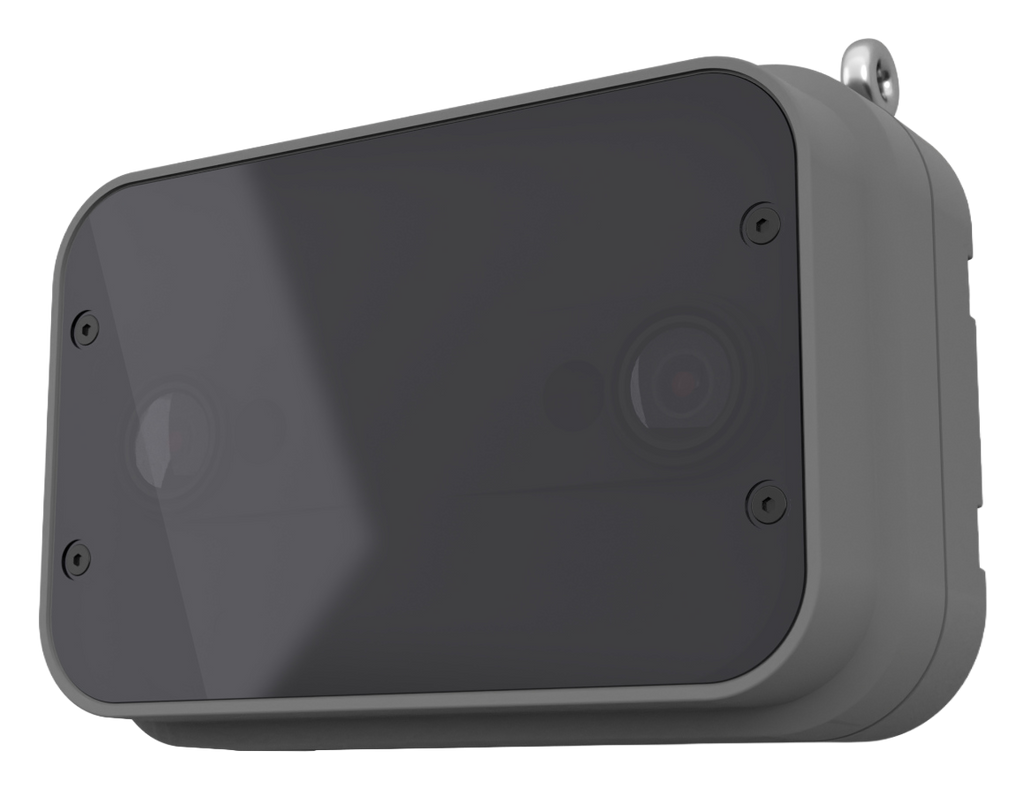

The Xovis PC2SE-O is an outdoor 3D people counting sensor for street-facing store entrances, open-air shopping centres, station entrances, stadium gates and event venues. It brings the functions of the indoor PC2SE into a weather-protected grey housing that guards against water and dust, counts people in and out with 3D stereo vision and on-device AI from 1.95 to 6.00 m (6.4 to 19.7 ft), and sends only anonymous counts, never images. It ships pre-assembled with casing and cable. Choose the standard PC2SE-O, the PC2SE-L-O for heights close to 6 m or the PC2SE-UL-O for low mounting points.
Buying for several entrances or sites? Shop prices are per unit and exclude VAT. For projects we quote hardware, installation, licences and support together. Request volume pricing. Partners see their own price after signing in.
Key features
- Built for outdoor use: protected against water and dust, operating from -33 to +40 °C and 0–95 % relative humidity (non-condensing), with water protection caps for the RJ45 connector.
- 3D stereo vision with on-device AI for reliable in/out counts of people and groups.
- Mounting height 2.20–6.00 m (PC2SE-UL-O: 1.95–3.50 m), with coverage up to 11.00 × 8.00 m per sensor on the PC2SE-L-O.
- Privacy by design: 4 privacy modes, data sent as text only, without personally identifiable information. Xovis states the sensor carries an ePrivacy seal for GDPR-compliant operation.
- Open integration: API with Swagger documentation and data push over HTTP(S), MQTT(S), FTP(S), SFTP, TCP and UDP.
- Power over Ethernet (PoE Class 0, IEEE 802.3af, max 7.5 W) and up to 3 years of on-device data storage.
- Multi-sensor stitching for wide entrances (plan at least 30 cm overlap); use a Xovis SPIDER for 10 or more sensors.
Which PC2SE-O model do I need?
| Model | Mounting height | Best for |
|---|---|---|
| PC2SE-O (standard) | 2.20–6.00 m (7.2–19.7 ft) | Most outdoor entrances and gates |
| PC2SE-L-O | 2.20–6.00 m (7.2–19.7 ft) | Optimised for heights close to 6 m; widest coverage |
| PC2SE-UL-O | 1.95–3.50 m (6.4–11.5 ft) | Low canopies and wide, low entrances |
All three models are stocked in this shop.
Coverage by mounting height
Counting area per sensor (width × depth), from the Xovis Selection Guide (July 2026), which lists the PC2SE-O models with the same coverage as the indoor PC2SE models. Between 1.95 and 2.10 m the PC2SE-UL-O counts only, for passages up to 1.00 m wide.
| Height | PC2SE-O | PC2SE-L-O | PC2SE-UL-O |
|---|---|---|---|
| 2.2 m | 0.75 × 0.43 m | 0.75 × 0.43 m | 1.20 × 1.00 m |
| 2.5 m | 1.88 × 1.06 m | 1.88 × 1.06 m | 2.63 × 2.13 m |
| 3.0 m | 3.75 × 2.13 m | 3.75 × 2.13 m | 5.00 × 4.00 m |
| 3.5 m | 5.63 × 3.19 m | 5.63 × 3.19 m | 7.00 × 5.88 m |
| 4.0 m | 7.00 × 4.25 m | 7.50 × 4.25 m | – |
| 5.0 m | 7.00 × 5.00 m | 11.00 × 6.38 m | – |
| 6.0 m | 7.00 × 5.00 m | 11.00 × 8.00 m | – |
Technical specifications
| Technology | 3D stereo vision, embedded AI processing |
| Environment | Outdoor; ingress protection against water and dust; pollution degree PD4 |
| Mounting tilt | ±15° x-axis, ±5° y-axis |
| Power | PoE Class 0 (IEEE 802.3af), max 7.5 W |
| Network | 1000Base-T Ethernet, RJ45 with water protection caps, up to 100 m (Cat-5e shielded or better); IPv4/IPv6, DHCP, HTTPS, IEEE 802.1X |
| Data push | HTTP(S), FTP(S), SFTP, MQTT(S), TCP, UDP |
| Operating conditions | -33 to +40 °C, 0–95 % RH non-condensing, minimum 9 lux |
| Dimensions | 15.45 × 10.29 × 8.30 cm |
| Weight | 1,100 g including mounting plate |
| Colour | Grey (RAL 9006) |
| Certifications | IEC/EN 62368-1, IEC/EN 61326-1, CISPR 11/32/35, FCC 47 CFR Part 15, ICES-001, RoHS |
| MTBF | 326,446 h at 40 °C |
| Firmware | 5.1 or later |
Source: Xovis PC2SE-O technical datasheet and Xovis Selection Guide (PDF, no sign-up).
Sensor and software: what you get
On the sensor: in/out counting across the covered area, privacy modes, on-device storage, API and data push. In software: dashboards, multi-site comparisons, conversion with POS data and reporting. Use the PC2SE-O with VemCount, which comes with a 60-day free trial (see software plans), or connect it to your own platform through the API and MQTT. Optional AI extensions such as staff exclusion and gender statistics are added with the XC-PAB licence; group counting is included in firmware 5.
Installation and accessories
Mount the sensor centred over the counting line, with light of at least 9 lux on the counting area, and seal the RJ45 connection with the supplied water protection caps. For angled installs Xovis lists the PA-PC-PM medium pivot mount for the outdoor PC2 series. Need PoE? See the Gigabit PoE injector. After mounting, Vemco can configure and validate the sensor with the remote setup and validation service, and you can extend the warranty with a 1-year or 2-year extension.
Already own a Xovis sensor, or replacing a counter?
Existing Xovis PC2, PC2S, PC2R and PC3 sensors, including outdoor units, connect to VemCount without new hardware, and Vemco migrates your historical data. Ask a technical specialist.
Related sensors: PC2SE indoor · PC2RE with Wi-Fi · PC3SE-O for high outdoor mounting · Milesight VS125 Outdoor
Frequently asked questions
What is the difference between the Xovis PC2SE and PC2SE-O?
The PC2SE-O has the functions of the PC2SE in a pre-assembled outdoor housing that protects against water and dust, rated for -33 to +40 °C. The indoor PC2SE is IP40 and rated 0 to +45 °C.
What is the IP rating of the PC2SE-O?
The Xovis datasheet describes ingress protection against water and dust for outdoor use and does not state an IP code. Ask us if your tender needs a specific rating.
What mounting height does the PC2SE-O need?
The PC2SE-O and PC2SE-L-O mount at 2.20–6.00 m. For low mounting points choose the PC2SE-UL-O (1.95–3.50 m).
Does the PC2SE-O work at night?
It needs at least 9 lux on the counting area, so plan lighting for dark entrances.
How much does an outdoor people counter cost?
The shop price per unit is shown above, excluding VAT. A complete project also includes mounting, installation and software; VemCount starts with a 60-day free trial. Ask for a project quote.
