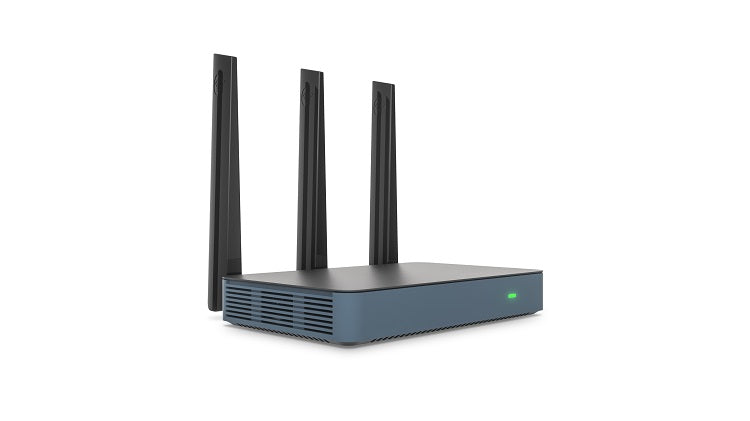

LoRaWAN indoor gateway GW1000 for smart buildings


Preço:
Preço promocional€450,00 EUR

Descrição

Compact LoRaWAN indoor gateway tailored for smart offices and smart buildings. This gateway serves as an auxiliary device, bridging signal blind areas within small-scale LoRa networks.

Powered by the SX1308 chip, it fully adheres to the LoRaWANTM standard. Simultaneously receiving data from 8 channels, the gateway efficiently encapsulates data into Ethernet packets and transmits it in real-time to the LoRaWAN VEMCO network server. Additionally, it can process tasks from the server, converting Ethernet data into radio frequency signals and transmitting them to respective end-devices. This bidirectional transmission capability fosters seamless communication within the Internet of Things.

The GW1000 finds versatile applications in various settings such as, offices, basements, plants, stores, cafes, and bars, offering a reliable and convenient solution for enhancing smart connectivity.

Support LoRaWANTM latest protocol stack LoRaWAN1.0.2, LoRaWAN 1.0.3, LoRaWAN1.1,

Compatible with other LoRa end-device

8 uplinks channel, 1 downlink channel, support adaptive data transfer rate

Support wired network, LTE available,4G version, WiFi, support WAN/4G network connection switch automatically

LTE version optional for China, Europe, US respectively. Chinese version suitable for China mobile, China Unicom, China Telecom; support 4G network reconnection

Support WiFi spot

Support USB storage and device extension

Support status check on WEB and modify configuration

Support firewall protection and DNS parsing rebinding protection

Support remote OTA upgrade, self-diagnosis and repair

Support TF card log storage

Hardware:

Description

Specifications

Master control

Qualcomm 9531 master control chip, 128M memory, 16M Flash

Power supply

DC12V

LoRa frequency

CN470-510/EU863-870/US902-928/AS923/AU915-928/KR920-923

LoRa communication rate

292bps - 5.4kbs, support spread factor SF7-SF12

LoRa Tx power

17dBm

Maximum power: 20dBm (at the antenna mouth)

LoRa Rx sensitivity

-141dBm@SF12

LoRa antenna gain

2dBi

LoRa antenna type

Omni-direction

Channel

8 uplinks, 1 downlink

LoRa working mode

Half-duplex

Base station

Network

LTE model

Frequency supported by 4G module for China:

LTE-TDD : B38/B39/B40/B41

LTE-FDD: B1/B3/B5/B7/B8

TD-SCDMA: B34/B39

UMTS:B1/8

EVDO: 800MHz

CDMA1x: 800MHz

GSM: 850/900/1800/1900


Frequency supported by 4G module for US:

FDD LTE:B2/B4/B12

WCDMA: B2/B4/B5

WiFi

2.4GHz, AP mode,

Maximum power: 18dBm

Data backhaul

10/100M Ethernet, 3G/4G

Debug interface

WiFi; LAN; serial port

Temperature

-1050

Humidity

5%95%

Consumption

7W

Dimension

180mm*115mm*168mm



Cornel

Linux-4.14.88

LoRa protocol

LoRaWANTM V1.1 GWMP protocol, Class A/C

User interface

WEB interface

Language and interface

Chinese/English, logo available or not

3G/4G dial networking

Support QMI-Qualcomm universal dialing

Local time synchronization

Support NTP client, different time zones can be set

Upgrade and flash

Support upload firmware fresh in WEB and OTA remote upgrade

WiFi connect to gateway

2.4GHz, 802.11bgn, WPA2 PSK encryption, support remote upgrade

Firewall

IP tables v1.8.2, support customized rule, equipped with STA+AP protection

Network load balancing

Support WAN and 4G network connection, WAN network preferred

Gateway ID

generate automatically

Gateway ID generated based on WiFi MAC address

Local log management

Support logs stored in TF card, when it full to clear the old one

Fault self-diagnosis

Support system self-diagnosis, and report results

Remote management

Support to report gateway and WAN, 4G, WiFi, LoRa, TF card status in a  period, support remote downlink configuration parameters, remote upgrade, remote reboot, remote maintenance
